Portable Leeb Hardness Tester: A Complete Technical Guide for Industry Professionals

Introduction: Why On-Site Hardness Testing Matters

Imagine this: a pressure vessel has just been welded at a refinery. Sending it to a lab for hardness testing means downtime, logistics, and delay. Now imagine testing it right there on the shop floor — in two seconds — without damaging the surface. That is exactly what a portable hardness tester makes possible.

In manufacturing, construction, aerospace, shipbuilding, and oil & gas, hardness testing is not optional. It directly determines whether a metal component is safe to use. Traditional benchtop testers — Rockwell, Brinell, Vickers — are accurate, but they demand that the workpiece come to the machine. For large, installed, or complex components, that is simply not practical.

This article covers the Portable Leeb Hardness Tester in depth. It explains how it works, how it compares to UCI testing, what industries use it, and how RiM LaS Private Limited is bringing reliable UCI & LEEB Portable Hardness Testers to Indian industry.

miro.medium.com

What Is a Portable Leeb Hardness Tester?

The Leeb Rebound Hardness Test was invented by Swiss company Proceq SA and is one of the four most used methods for testing metal hardness. Developed in 1975 by Leeb and Brandestini, it was designed as an alternative to unwieldy traditional hardness measuring equipment. Wikipedia

The first commercial product was named the “Equotip,” and that term is still widely used today.

The core principle is simple: an impact body with a spherical tungsten carbide tip is accelerated onto the test surface by spring force. The velocities before and after impact are measured in a non-contact mode. NDT.net Harder materials cause less energy loss on impact — and that energy difference is the measurement.

The Leeb hardness value, HL, is calculated from the ratio of the impact and rebound speed. The impact body rebounds faster from harder test samples.” — Per ASTM E140 / ISO 16859

How the Leeb Method Works: Step by Step

Step 1 — The Impact Body

The impact body has a spherical tungsten carbide tip and is accelerated onto the test surface by spring force. NDT.net

Step 2 — Velocity Measurement

A small permanent magnet within the impact body generates an induction voltage during its passage through a coil, with this voltage being proportional to the speed. NDT.net This captures both pre-impact and post-impact velocities without physical contact sensors touching the surface.

Step 3 — The Leeb Calculation

HL = (Vr / Vi) × 1000

Where Vr = rebound velocity and Vi = impact velocity. A harder surface returns more energy, giving a higher HL value.

Step 4 — Hardness Scale Conversion

No engineer specifies hardness in “HL.” Conversion tables, stored in all instruments, convert Leeb HL values into required hardness scales (HV, HB, HS, HRC, HRB, N/mm²). NDT.net

Leeb vs. UCI: Choosing the Right Portable Hardness Tester

Both are portable hardness testers, but their physics are entirely different.

What Is UCI?

The basic principle behind the UCI method is that ultrasonic wave propagation in a material is affected by its hardness. When a vibrating rod is pressed against the material being tested, the vibration characteristics change depending on the hardness of the material. The harder the material, the less the rod can vibrate. Leeb-instrument

The UCI method is recommended for testing fine-grained material having any shape and size. It is especially used where material properties are to be processed with narrow tolerances, for example for determination of strain hardening on drop-forged parts. With the small indent of the UCI probes, hardness can be measured on welded parts in the critical area of the weld — the heat-affected zone (HAZ). Teqto

Side-by-Side Comparison

FeatureLeeb (Rebound)UCI (Ultrasonic)Best forLarge, coarse-grained metals, castings, forgingsFine-grained, thin, surface-hardened partsMin. sample weight~1 kg without couplingNo minimum weight restrictionIndentation size~0.5 mm diameter (D-type, HLD 600)Ultra-small — from 1 mm control areaTest duration~2 seconds2–5 secondsDirection sensitivityGravity-affected; needs compensationNo direction restrictionMin. wall thickness~5 mm (D-type)~1 mmScale outputHL, HRC, HB, HV, HRB, HS, σbHV, HRC, HB, HRB

Key Decision Rule: Use Leeb for large, installed, or rough components — pressure vessels, crankshafts, structural beams. Use UCI for small, thin, heat-treated, or precision-machined parts — gears, weld seams, nitrided shafts.

Impact Device Types for Leeb Testers

Impact DeviceSpring EnergyTypical UseD (Standard)11 N·mmGeneral purposeDC11 N·mmRestricted spacesD+1511 N·mmNarrow groovesC3 N·mmCase-hardened, thin-walled partsG90 N·mmCoarse castings, large forgingsE11 N·mmHigh-hardness materialsDL11 N·mmBores, inner surfaces

Application solutions are determined by the force and ball size of the impact body. The operator can select between different impact devices depending on the testing task. NDT.net

Supported Hardness Scales and Measuring Ranges

A modern portable Leeb hardness tester such as the TKM-359CE supports:

ScaleMeasurement RangeHLD200–960HRC19.8–68.5HB30–651HV80–976HRB13.5–100HS (Shore)26.4–99.5σb (Tensile Strength)375–2639 N/mm²

These conversion tables follow ASTM E140 and ISO/DIS 16859–1 standards.

Materials Tested by a Leeb Portable Hardness Tester

The Leeb method provides robust control over the hardness of a wide range of materials, including structural, tool, corrosion-proof, heat-proof, and non-corrosive steels and alloys, as well as alloys of nonferrous metals, cast iron, aluminium, bronze, and brass — without necessitating additional calibrations. Teqto

Also measurable: surface-hardened components (carburized, nitrided, induction-hardened) and items of complicated configuration.

RiM LaS Private Limited: India’s Sole Sales Partner for Mashproject LLC

When discussing UCI & LEEB Portable Hardness Testers in the Indian market, RiM LaS Private Limited stands out as a key distribution authority.

Established in 2019 in Noida, Uttar Pradesh, RiM LaS Private Limited is engaged as a wholesaler of coating thickness gauges, portable hardness testers, and testing equipment. IndiaMART

Mashproject LLC, Russia, has chosen RiM LaS as the sole national sales partner for India. Mashproject LLC is a scientific-production company formed by a group of engineers and the Materials Research Institute’s department of non-destructive testing, one of the top allied institutes in the Defense Industry. The team has more than 30 years of experience developing, manufacturing, and utilizing non-destructive testing, inspection, and evaluation techniques. Metal Hardness

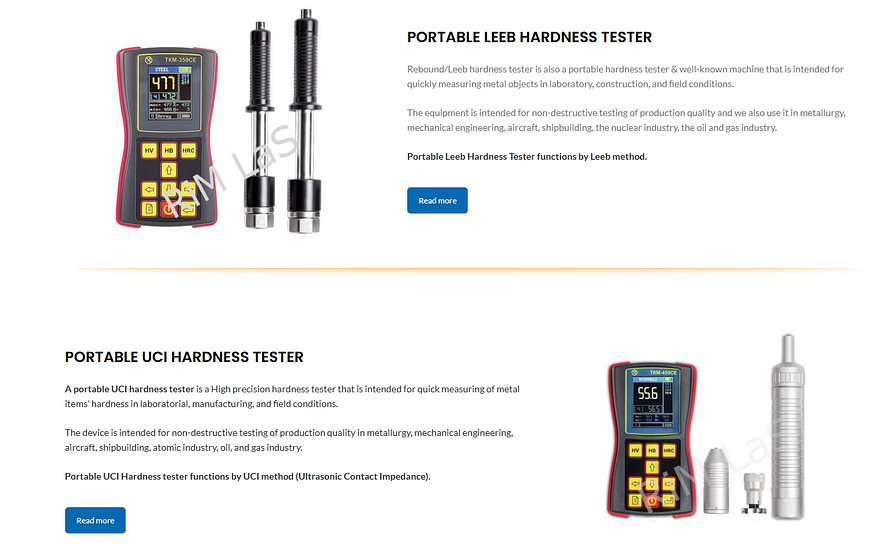

TKM-359CE — Leeb Hardness Tester

The TKM-359CE is a high-precision rebound/Leeb hardness tester intended for quick measuring of metal items in laboratory, manufacturing, and field conditions. It is designed for non-destructive testing of production quality in metallurgy, mechanical engineering, aircraft, shipbuilding, atomic industry, oil, and gas industry. Rimlas

Key advantages include automatic direction compensation, stable measurements independent of probe pressing force, and coverage of all basic metal types without re-calibration.

TKM-459CE — UCI Hardness Tester

The TKM-459CE UCI hardness tester features stable readings independent from force and time of pressing, easy measuring in hard-to-reach areas, ultra-small control area from 1 mm, and control in slots and blind holes from 5 mm — not provided by rival devices. The impact-, dust-, and water-proof housing features an intuitive graphic interface with a bright color graphic display that allows working at below-zero temperatures. RImas

Contact: sales@rimlas.co.in | +91–9137398070 | www.rimlas.co.in

Industry Applications

Oil & Gas — Pipeline and Vessel Inspection

Pressure vessels and pipelines must meet hardness specifications per ASME and API standards. A test takes a mere 2 seconds and, using the standard probe D, leaves an indentation of just ~0.5 mm in diameter on steel — compared to a Brinell indentation of ~3 mm on the same material with a standard-compliant measuring time of ~15 seconds plus indentation measurement time. Wikipedia

Aerospace — Heat-Treated Component Verification

In the aerospace industry, materials used in aircraft parts need to have consistent hardness throughout different depths to ensure safety and reliability. UCI testers provide a reliable way to check hardness at various points within these materials, helping to prevent potential failures. Leeb-instrument

Heavy Engineering and Foundries

Large castings and forgings — crankshafts, press frames, gearbox housings — are too heavy to move to a lab. The G-type Leeb probe handles coarse-grained castings, converting results directly to HB values, which are the standard specification for cast parts.

Power Generation

Post-weld hardness testing on turbine rotors, generator shafts, and boiler drums verifies that heat-affected zones have not become too hard (embrittlement) or too soft (strength loss), in compliance with EN ISO 9015 and ASME Section IX.

Metal Warehouses and Incoming Inspection

Material mix-ups are a documented problem in steel distribution. A portable hardness tester at the incoming inspection station confirms a steel grade in minutes — before it enters production.

Case Study: Weld Inspection at a Steel Fabrication Plant

Situation: A structural steel fabrication company in Maharashtra was supplying welded beam assemblies for a bridge construction project. The specification required all weld heat-affected zones to measure between 200–350 HV.

Challenge: The company had no portable hardness tester. Lab-based Vickers testing required cutting samples from every fifth weld — destructive, slow, and costly.

Solution: They introduced a UCI portable hardness tester (TKM-459CE model, sourced via RiM LaS). The UCI method’s small indentation left no visible mark on finished surfaces. Operators tested every weld on-site, with HV readings displayed directly.

Result: Full 100% weld coverage was achieved. Three non-conforming welds that would have passed random sampling were identified and repaired before delivery. Inspection time per assembly dropped from 45 minutes (lab-based) to under 8 minutes (on-site UCI).

Factors That Affect Leeb Hardness Measurement Accuracy

1. Surface Preparation The indentation depth should be large in comparison to the surface roughness. If surface preparation is necessary, care must be taken not to alter the surface hardness by overheating or cold working. A battery-driven high-speed handheld grinder with 180-grit paper takes just 10 seconds to prepare most surfaces. NDT.net

2. Sample Weight and Coupling The Leeb method is mainly used for testing sufficiently large workpieces (mainly above 1 kg). Wikipedia Lighter samples absorb rebound energy and return false low readings.

3. Impact Direction The Leeb hardness tester is not entirely suitable for measuring in any direction because the sphere’s movement is deflected by the force of gravity. Axiotek Modern instruments like the TKM-359CE include automatic direction compensation to correct for this.

4. Wall Thickness Minimum wall thickness for the D-type probe is approximately 5 mm. Thinner walls resonate on impact and corrupt the rebound signal.

5. Surface Curvature When the curvature radius of the surface is smaller than 30 mm (for D, DC, D+15, C, E, and DL type impact devices), small support rings or special support rings should be used. Yushindt

Standards and Compliance

StandardScopeISO 16859–1Leeb hardness test — Test methodISO 16859–2Verification and calibration of Leeb devicesISO 16859–3Calibration of reference test blocksASTM E110Portable hardness testing of metallic materialsASTM E140Hardness conversion tables (includes Leeb HL)EN ISO 9015Hardness testing of weldsASTM A956Leeb hardness testing of steel products

Frequently Asked Questions (FAQs)

Q1. What is the minimum sample weight for a Leeb portable hardness tester? For the standard D-type probe, the minimum unsupported sample weight is approximately 1 kg. Below this, the sample must be clamped to a fixed support to prevent movement on impact.

Q2. Can a Leeb tester work on aluminum? Yes. Most Leeb testers include pre-loaded material groups for aluminum alloys. Users must select the correct material group to ensure accurate conversion.

Q3. Which is more accurate — Leeb or UCI? Neither is universally more accurate. Leeb suits large, coarse-grained metals. UCI delivers better precision on fine-grained, thin, or surface-treated materials. For weld HAZ testing, UCI is the recommended method per EN ISO 9015.

Q4. How do I calibrate a portable Leeb hardness tester? Calibration uses a certified reference test block. The acceptable performance for the D-type device is based on 5 measurements on a certified Leeb test block, and the average of the 5 measurements should be within ±6 HL of the test block’s certified value. BergEng

Q5. What hardness scales does the TKM-359CE output? It outputs HL, HRC, HB, HV, HRB, HS, and tensile strength (σb in N/mm²).

Q6. Can the UCI tester measure inside bores or slots? Yes. The TKM-459CE measures in slots and blind holes from 5 mm in diameter — a capability not found in most competing instruments.

Q7. Does RiM LaS provide after-sales support in India? Yes. RiM LaS Private Limited, based in Noida, provides sales, technical support, and calibration services as the sole Indian sales partner for Mashproject LLC.

Q8. Is the Leeb test destructive? No. A test takes a mere 2 seconds and leaves an indentation of just ~0.5 mm in diameter on steel — compared to a Brinell indentation of ~3 mm on the same material. Wikipedia It is a recognized non-destructive testing (NDT) method.

User Reviews: What Industry Professionals Say

“We switched from sending samples to the lab to using a UCI portable hardness tester on the shop floor. Weld zone inspection went from a two-day cycle to same-day sign-off.” — Senior QC Engineer, Automotive Tier-1 Supplier, Pune “The Leeb tester is indispensable for our pressure vessel inspection. It reads HB directly, and the auto-direction compensation means our technicians don’t need to reposition the probe manually.” — NDT Inspector, EPC Contractor, Chennai “RiM LaS provided proper technical support during commissioning. The TKM-459CE was calibrated before dispatch, and the team walked us through material group settings for our stainless steel components.” — Materials Engineer, Pharmaceutical Equipment Manufacturer, Noida

Practical Buying Guide: What to Check Before Purchasing

Application requirements:

• Large, rough, or installed components → choose Leeb (D or G probe)
• Thin, small, or heat-treated parts → choose UCI
• Both types of applications → consider a dual-function instrument

Technical specifications to verify:

• Supported hardness scales (must match your drawings and standards)
• Impact device types available (D, G, C, DL, etc.)
• Automatic impact direction compensation (essential for field use)
• Minimum sample weight and wall thickness
• Data storage and export (USB or Bluetooth)

Operational factors:

• Display readability outdoors and in cold temperatures
• Housing protection rating (IP rating for dust and water)
• Battery life and replacement type
• Availability of certified reference test blocks

After-sales considerations:

• Replacement probe availability in your region
• Calibration service availability
• Technical training support
• Warranty terms

Final Thought

The Portable Leeb Hardness Tester has become a standard tool in modern NDT and quality assurance. It removes the need to transport large components to a lab, cuts inspection cycle times from days to minutes, and supports compliance with global material testing standards — all without destroying the test surface.

For professionals in India, RiM LaS Private Limited provides direct access to the Mashproject range of UCI & LEEB Portable Hardness Testers, backed by technical expertise and India-wide support. Whether the application is a refinery pipeline, an aerospace forging, or a weld seam on a structural beam, the right portable hardness tester delivers fast, traceable, non-destructive results — on-site, every time.

The choice between Leeb and UCI is not about which method is better in general. It is about matching the right physics to the right job. Understanding that distinction is the first step toward reliable hardness data.
